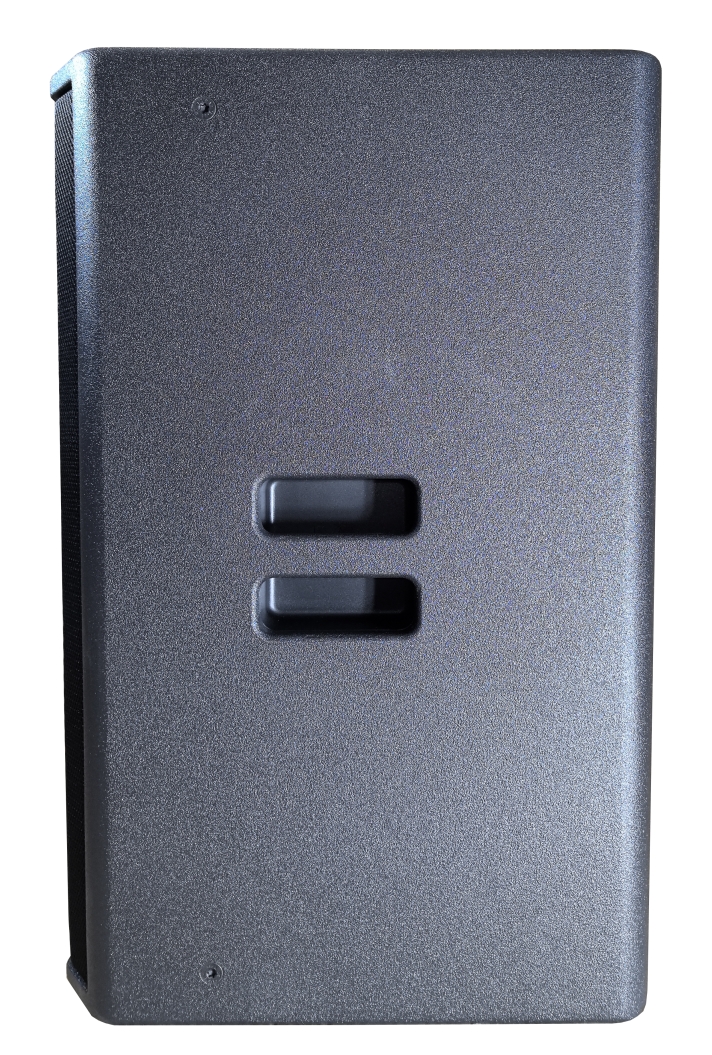

The ARES 12 is a full-range, extremely versatile controlled narrow-dispersion two-way loudspeaker system for medium throw applications. The high frequency section is a constant directivity horn loaded to a 1.4" compression driver and a 2.5" diaphragm assembly for smooth, controlled dispersion. The 90° x 60° horn design provides increased sensitivity for longer range applications. The low frequency transducer is a 12" woofer with a 3" voice coil.

System type: 12" two-way two-unit low-frequency front-oriented speaker

Unit composition: LF: 1×12″(300mm)/3″(75mm) Voice-coil

           HF: 1×1.4″(36mm) exit/2.5″(63mm) Voice-coil

Frequency Response (+/-5dB): 50Hz - 20kHz

Coverage angle (H×V): 90°×60° (rotatable)

Sensitivity (1m/1W): 100dB

Output sound pressure level: 126dB /132dB Peak

Rated Impedance: 8Ω

Power: 450W AES /1800W Peak

Frequency division mode: passive

Input Connectors: 2 x Neutrik Speakon NL4MP

Product Dimensions (HxWxD): 630X360X390mm( 24.8" x 14.17" x 15.35")

Weight: 30kg (66.14lbs)

Cabinet material: 15mm (0.6") high-quality multi-layer birch plywood

Cabinet mesh surface: Triangular hexagonal hole special steel mesh with sound-transmitting Airnet mesh

Surface spraying: black wear-resistant polyurea spraying (customizable color)

Armrest form: a mechanically optimized handle on the top

Hoisting point: 27 M10 screw hoisting holes

Support seat: PP plastic φ36mm (1.42") bottom support seat, 4.5° step adjustment, maximum +/-13.5° pitch
