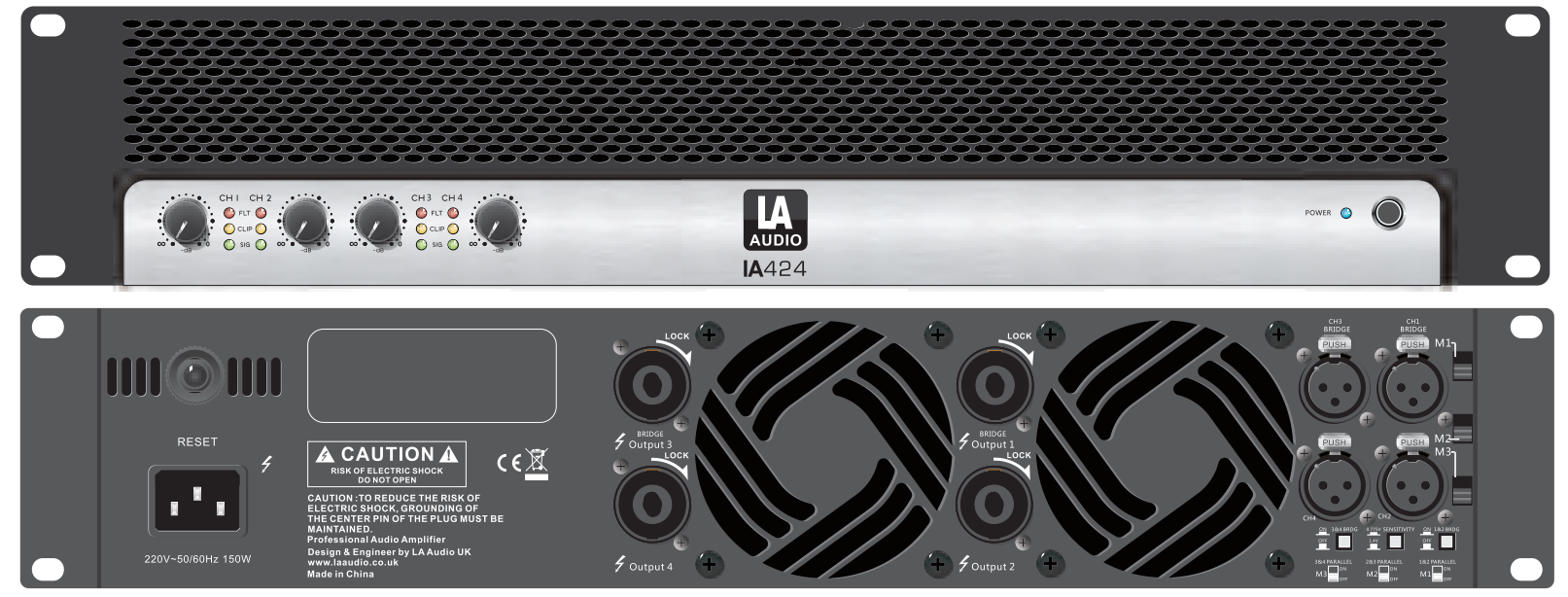

IA424
Four channel power amplifier
OVERVIEW
TECH SPECS

LA Audio IA Series Amplifiers are a range of intelligent 2 and 4 channels amplifiers designed for  sound contracting installations that require high quality audio feeds into multiple rooms.



The 2U amplifiers feature a logic controlled power supply automatically adjusting in real-time the power output level voltage and adapting the signal and load requirements dynamically at any time to achieve optimal power matching under the wide load conditions.



The IA series amplifier range delivers high quality, clean power from 300W to 1450W per channel into a 4 Ohm load so perfectly covering the needs from conference room, hotels, houses of worship to large scale sports stadium, with its stable and high quality performance. The chassis is made using precision CNC lathes to machine high quality steel to ensure the chassis is extremely strong and able to live up to the rigours of the sound contracting market

Technical Data :

Model

IA424

Channel

4

600W

420W

Bridge8Ω

1200W

Voltage Gain

31dB

Weight kg

13.7

Dimensions mm

482x227x88

Additional Data
Frequency Response20Hz-20KHz±1dB
20Hz-20KHz±1dB0.1%
S/N Rate20Hz-20KHz,A   weighted):107dB
Damping Factor10Hz-400Hz,8Ω200

Slew Rate

20V/us

Input Sensitivity):

 0.775V / 1.4V

Input Impedancenominal:

20kΩBalanced;10kΩ(unbalanced)
