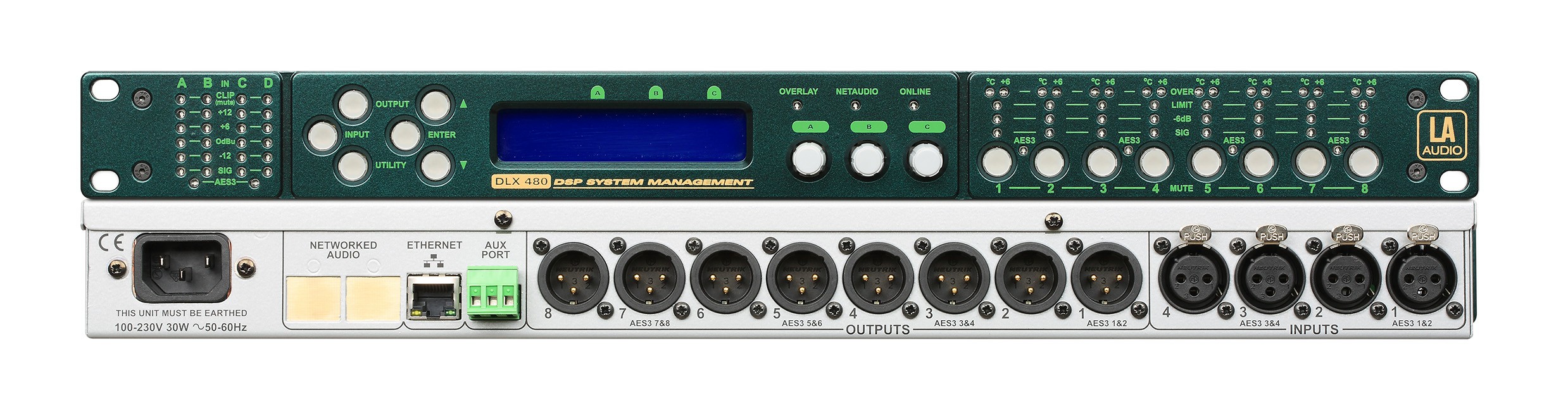

DLX480 is a high performance and easy to use signal processor for sound systems. With processing for 4 inputs and 8 outputs it takes advantage of the latest analogue to digital conversion and DSP technologies to deliver flawless audio that out classes it's competition.

Technical Specifications

Inputs: 4

Input impedance: >10k Ohm balanced

Output Imp:<100R imp. balanced

Max Input level: +20dBu

Outputs: 8

Max Output level: +18dBu into 600R

Sample rate: 96kHz

AES3 Input sample rate: 28kHz – 108kHz

AES3 Output sample rate: 96kHz

Frequency Response: 10Hz - 40kHz

Input Dynamic range: >120dBa Typ.

Output Dynamic range: >118dBa Typ.

THD (20Hz–20kHz) :<0.008% Typ.

Mains required 85-230VAC 50-60Hz

Mains power: 30W

Connectors

Audio input: 3 pin female XLR

Audio output: 3 pin male XLR

Ethernet: Shielded RJ45

Aux Contact: Phoenix Connector

Mains: 3 pin IEC

Environmental

Temperature: 0 to +45°C

Humidity: 0 to 80% RH (non-condensing)

Dimensions

Height: 1U (44mm)

Width: 482mm

Depth: 254mm

Weight: 2.7kg net
