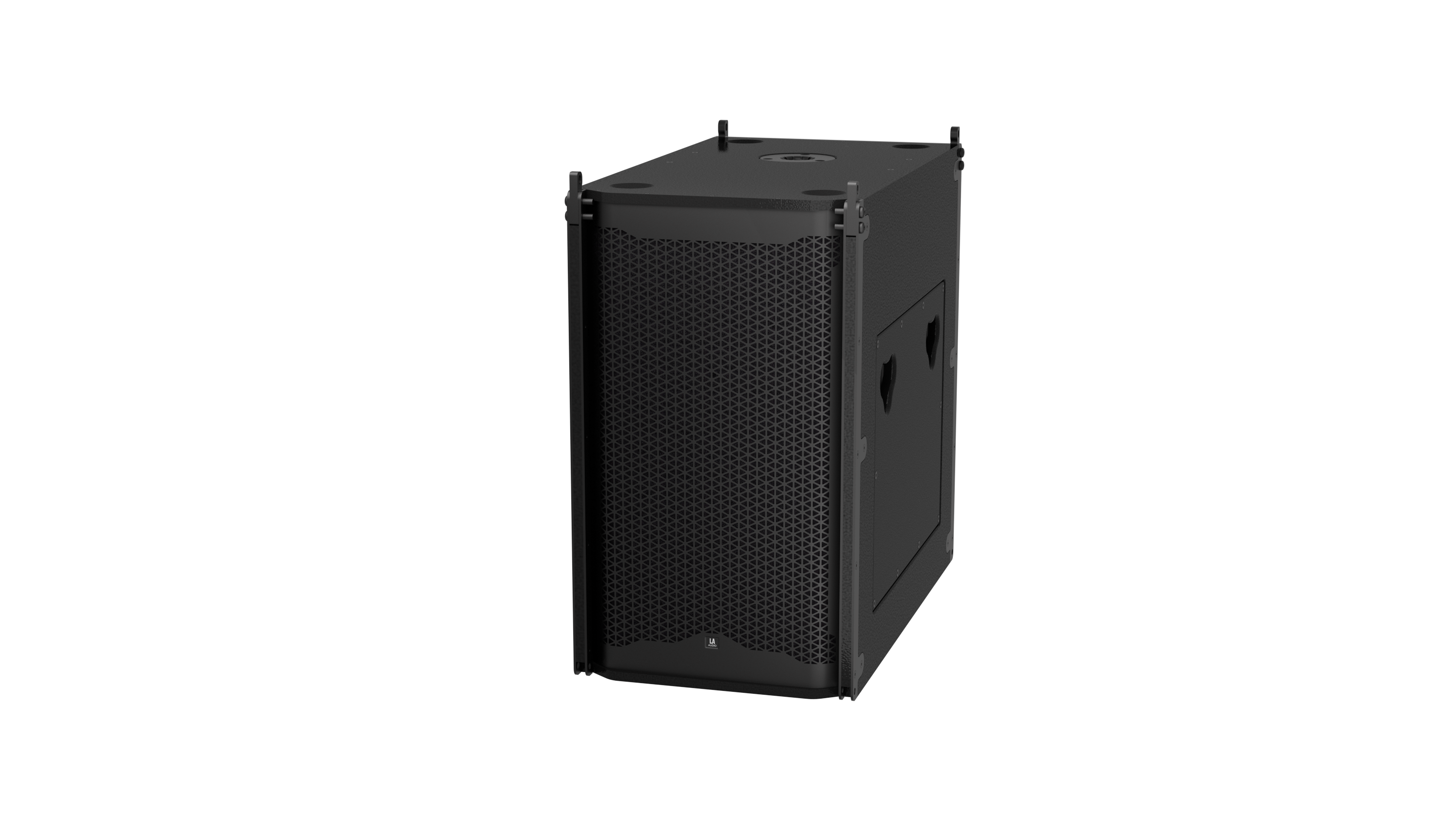

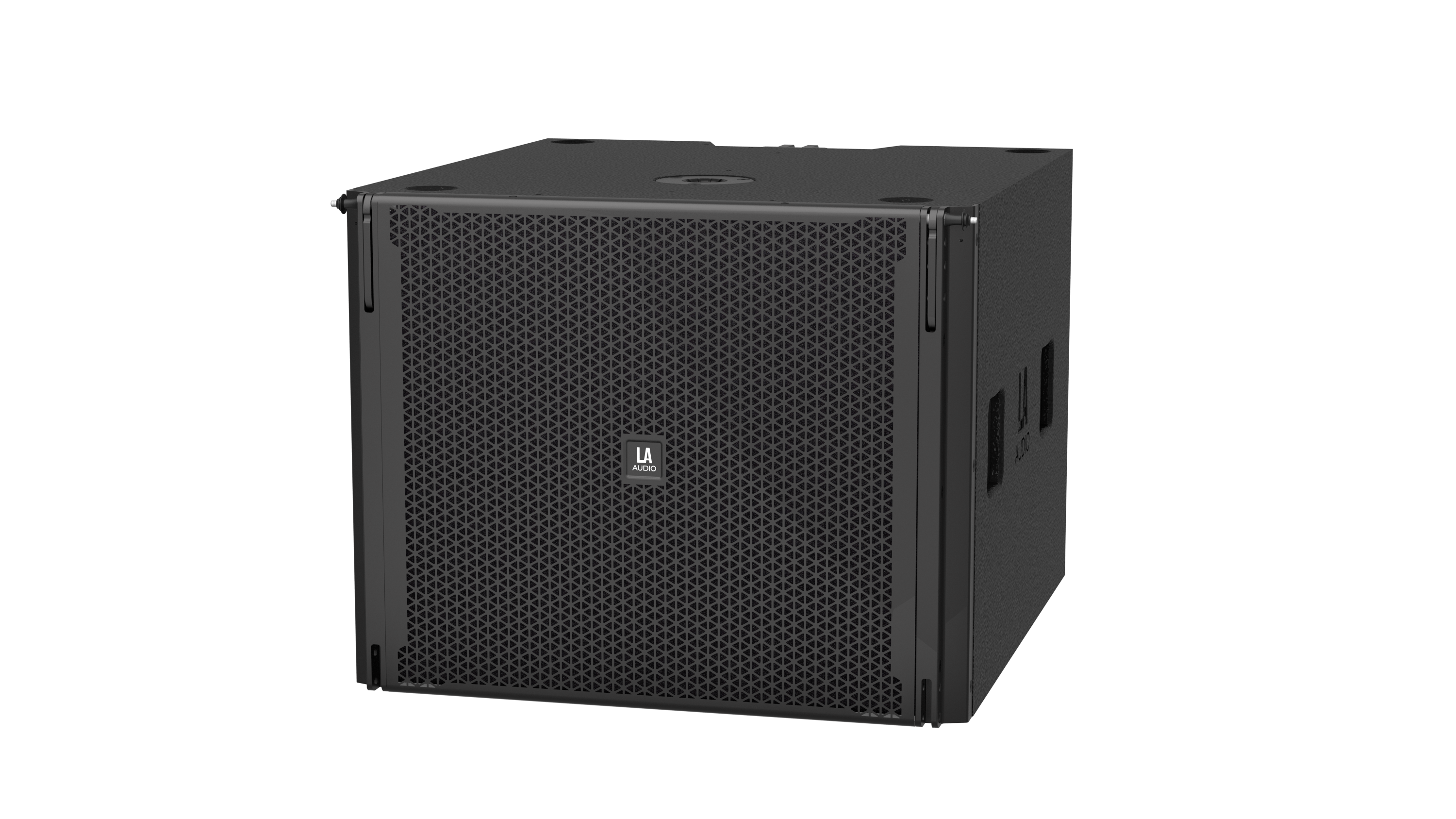

VB215 Ported Linear-Array Subwoofer delivers high-output bass reproduction for demanding applications. Featuring dual 15" neodymium drivers with long-excursion design and premium components, it maintains sonic accuracy and thermal stability at maximum power.

Advanced Port Technology:

Quad-corner aerodynamic phase ports significantly improve heat dissipation, reducing distortion while increasing efficiency with zero port noise. This patented design simultaneously reinforces structural integrity and suppresses cabinet resonance.

Versatile Deployment:

• Choice of permanent or touring rigging systems

• Stackable design with non-slip rubber feet

• Four ergonomic recessed handles

• Heavy-duty M35 threaded mounting points

Connectivity:

Dual rear-panel Neutrik® NL4MP connectors wired in parallel.

VB215T Variant:

Includes integrated flyware for suspended applications.

Acoustic characteristics

Type: dual 15 "inverted linear array ultra low frequency speaker

Unit composition: lf:2 × 15 ″ neodymium magnetic (380mm) / 3 ″ (75mm) voice coil

Coverage angle (horizontal / vertical): omnidirectional

Frequency response (+ / - 5dB): 36 Hz - 210 Hz

Sensitivity (1m / 1W): 101db

Output sound pressure level: 132dB / 138dB peak

Nominal impedance: 8 Ω

Power: 1200W AES / 4800W peak

Product size (HxWxD): 489X710X850mm

connect

Connecting plug: 2 x Neutrik ® NL4MP

Plug interface: input: 1 +, 1 -; Links: 2 +, 2-

Cabinet material

Box material: 18mm (0.7 ″) Baltic multi-layer birch plywood

Box spray: Black wear-resistant polyurea spray

Mesh cover material: triangular hexagonal customized hole steel mesh with sound permeable AIRNET mesh

Mesh spraying: Double anti-corrosion coating, galvanized and black polyester powder

Install application

Handle form: left and right two mechanical optimization handle

Lifting hardware: integrated four-point hanging system

Front suspension system: high strength steel quick link structure

Back suspension system: high strength steel quick link structure and stainless steel special bolt

Stacking component: rectangular multifunctional plastic foot pad

Support seat: alloy material φ 35mm standard support

All weather / color version: optional

Optional accessories: Suspension bracket LIT-BUMPV10, Suspension T-bracket LIT-TBUMPV10, floor cart with protective cover, rain cover, fitting connector
