Compact24
Full frequency passive loudspeaker
OVERVIEW
TECH SPECS

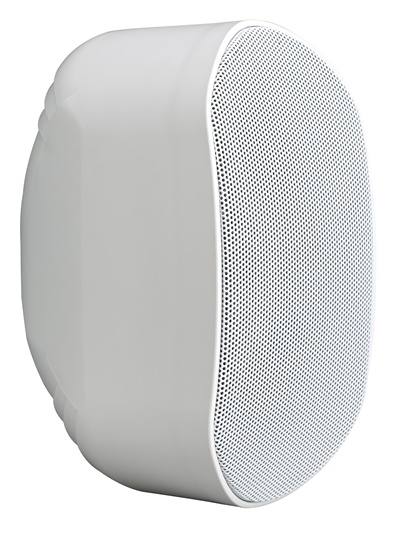

The LA Audio Compact24 is a small format, high performance sound reinforcement system designed for high quality foreground and background music applications. The Compact24 is designed for both indoor and outdoor applications and is ideal for use in restaurants, bars, hotels and other applications where high quality music systems are specified.

The Compact24 utilises a two element array of high output 4 inch (101.6mm) woofers. The horn loaded high frequency wave guide is positioned between the two element array to ensure coherent and balanced high­frequency response. Polar lobing is controlled by the geometry and produces a properly aimed response at the crossover frequency.

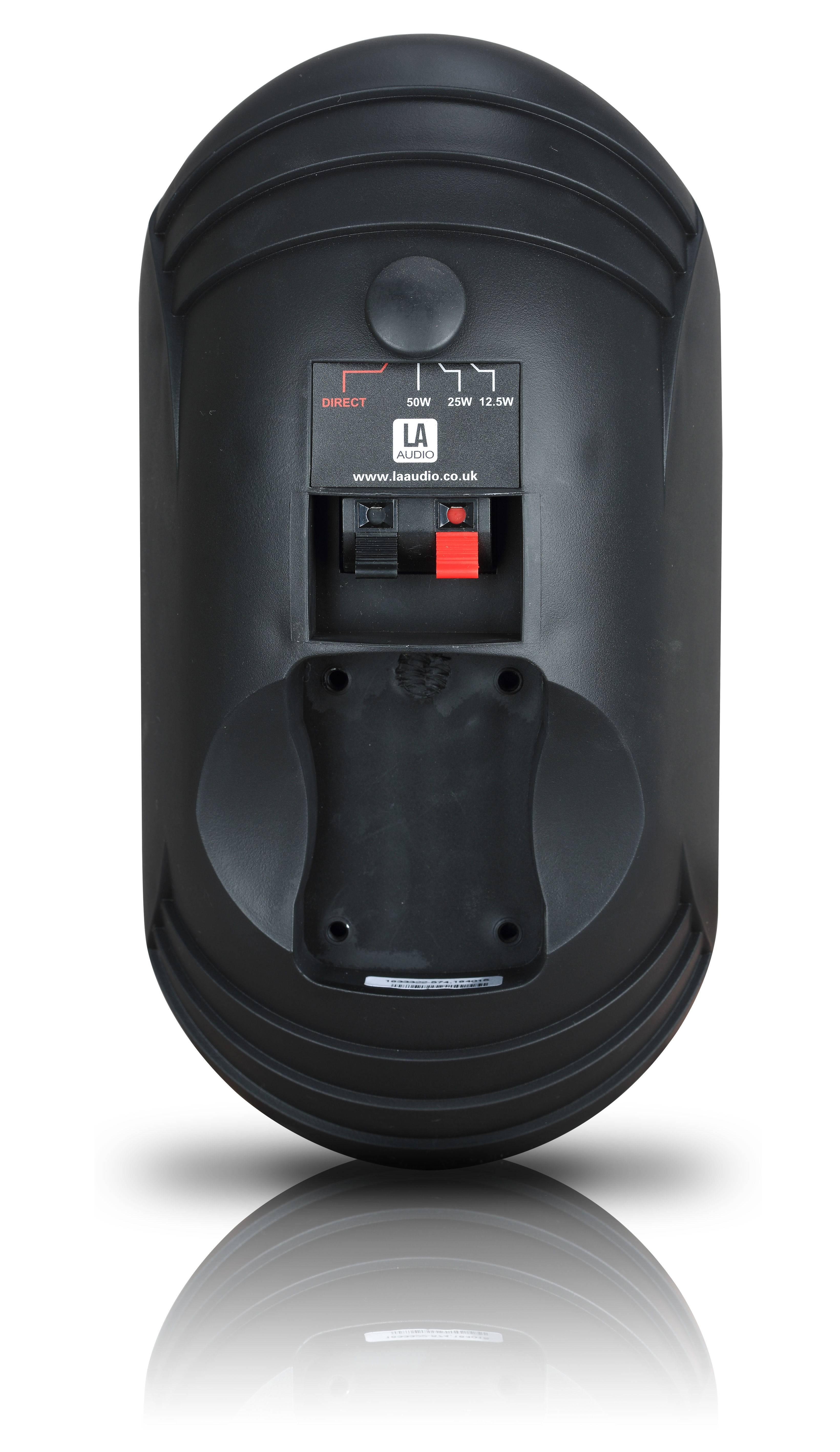

The Compact24 features a standard multi­tap transformer input that is switchable from a maximum of 50 watts of input power in 3dB steps. The available taps are - 50 watts, 25 watts, 12 watts and 5 watts. The Compact24 may also be easily configured for a standard low impedance direct input.

The system features a standard mounting bracket designed for flexible aiming and easy installation. The small physical size and unique appearance of the Compact24 make it an ideal installation product. It is versatile and combines great sound with great looks.

Model No.

Compact24

HF Driver

1”

LF Driver

2*4”

Power

50W (4Ω),12.5W/25W/50W(100V)

Nominal Impedance

Coverage Pattern

90º×60º

Sensitivity (1W/1M)

90dB

SPL(max)

116dB

Frequency Response  (-10dB)

80Hz - 19kHz

Dimensions  (W*H*D)

303×157×267 mm

Panel Material

Polycarbonate

Backcan Material

Polycarbonate

Connector

Push interface

Unit Weight

5.0kg
